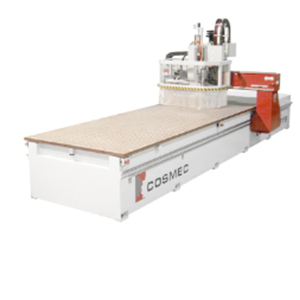

Conquest 255

Conquest 255

Category: , .

Product Description

TECHNICAL DATA CONQUEST 255
Strokes X: mm. 2630
Y: mm. 1990
Z: mm. 430 X: mm. 3250
Y: mm. 1990
Z: mm. 430 X: mm. 3280
Y: mm. 2590
Z: mm. 430
Working field mm. 2580 x 1300
Max thickness for panel feeding mm. 250/500/700/1000
Vectorial speed 85 mt/min
Linear speed 60 mt/min
Spindle rotation 500-20000 rpm
Spindler power Kw. 6,6 / 7,5 / 11
Tool chuck ISO 30 – HSK F63
Inverter power Kw. 11 / 15
Vacuum pump capacity 100 / 180 / 250 mc/h
Standard numerical control OSAI serie 10 with PC
Automatic tool changer 12 positions
INSTALLATION DATA CONQUEST 255
Air-working pressure 7 bar
Air-circuit connetion coupling G 3/8″
Extraction socket mm. 160
Air consumption for extraction 1300 mc/h
DISPATCH DATA CONQUEST 255
Weight 2610 Kg.
Dispatch dimensions mm. 4600 x 2330 x 2500
